New aluminium oil damper shock set from JK-RC. Please note that these do not fit the CC-01 chassis.

This is a full set of new hop-up oil dampers supplied pre-built & filled ready to fit as shown using the screws supplied and the nuts from the top fittings on your existing shocks.

Remove all four shocks, remove all four low ball fittings.

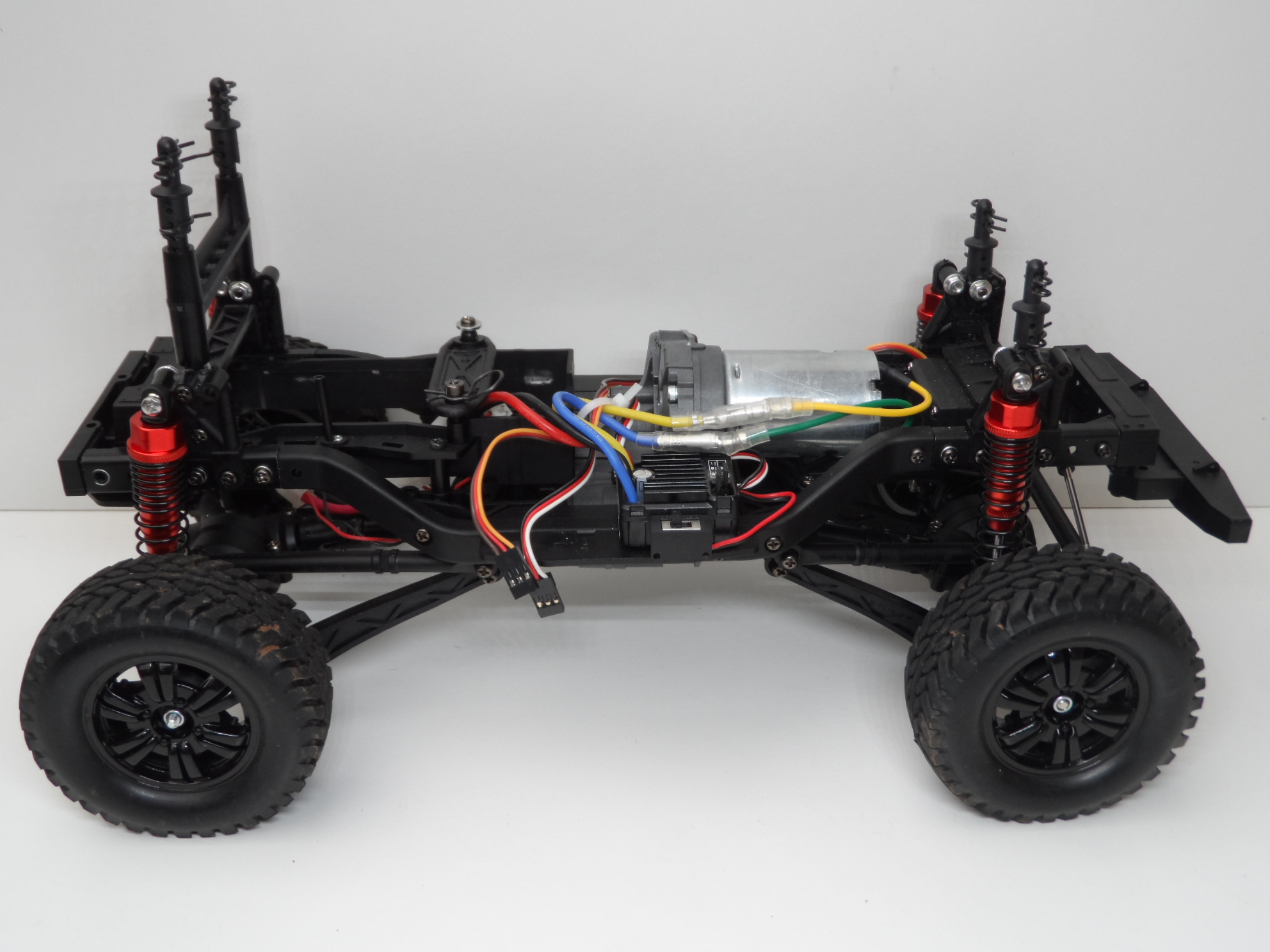

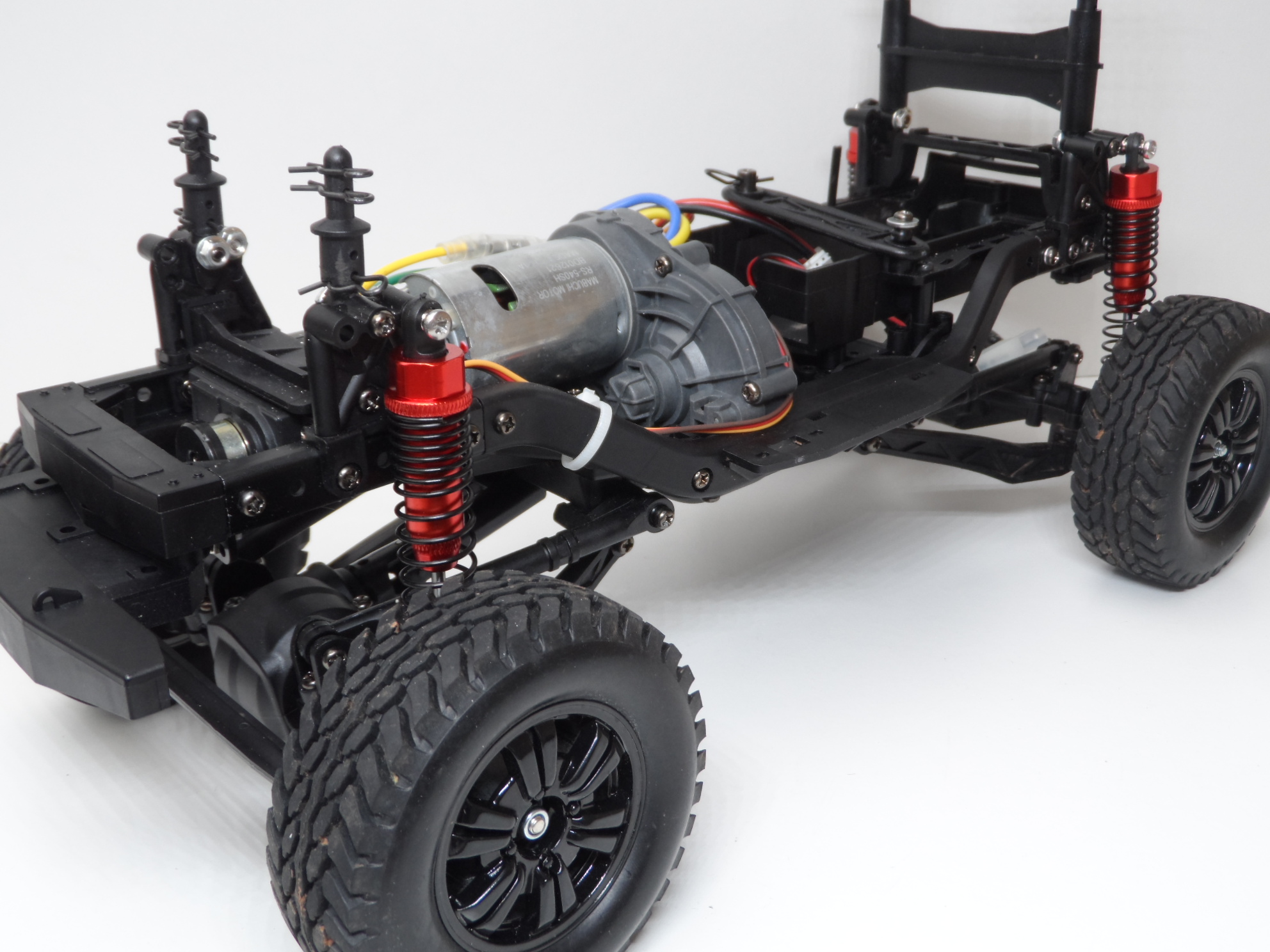

Fit the replacement shocks using the same mounting points for the fronts and the rear-most mounting points for the rears. Use the 20mm screws supplied and the nuts from the car's existing shocks (do not reuse the original screw or tube) for the top mounting points and the 12mm screws for the bottom mounting points. You will need to move the small silver screw from the rear lower mounting points and fit it where the rear shock was previously mounted at the bottom on the front side of the axle.

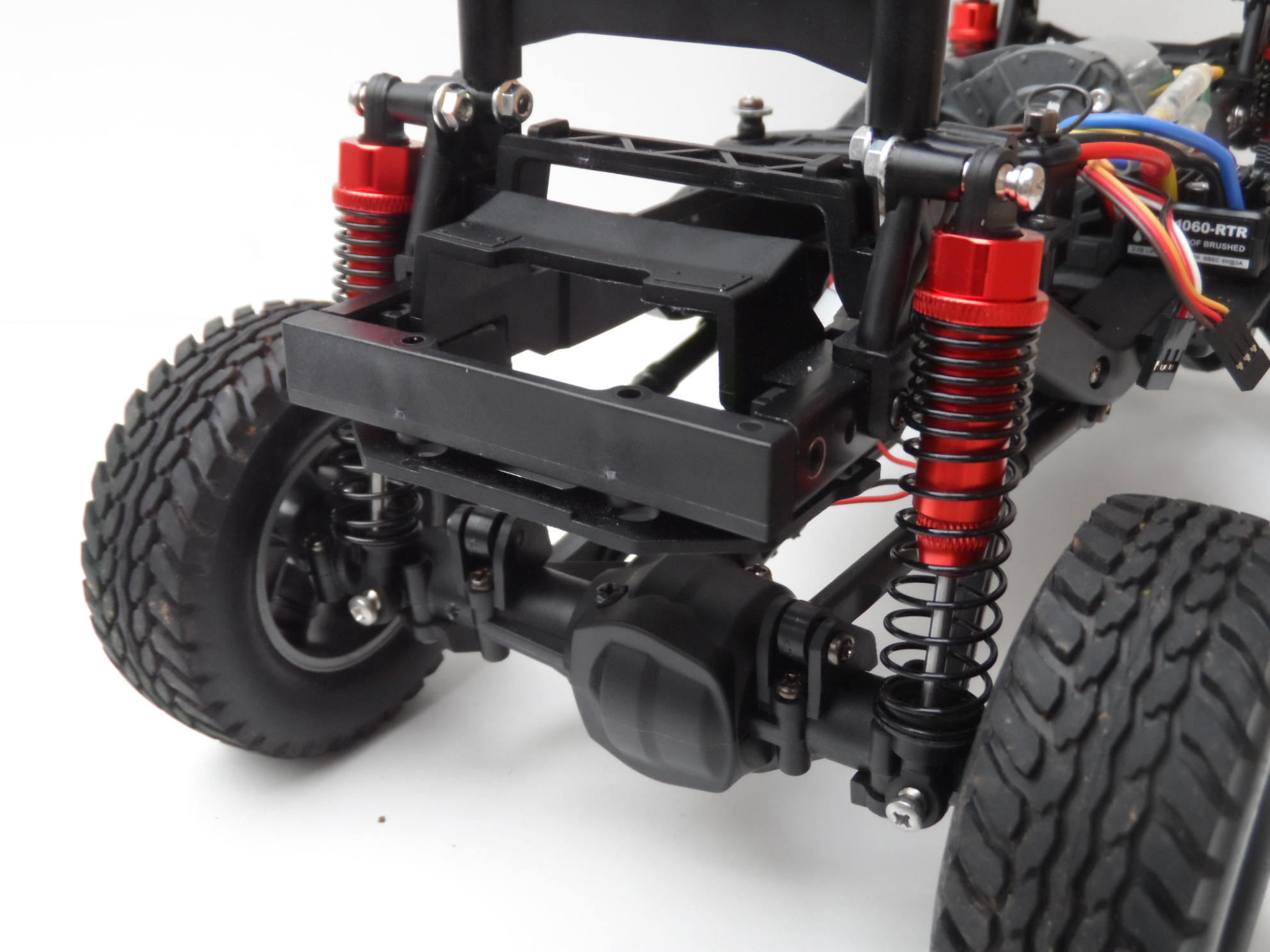

Rear shocks: These fit exactly the same as the fronts but we found using the rear-most mounting points top & bottom as shown in the pictures worked slightly better.

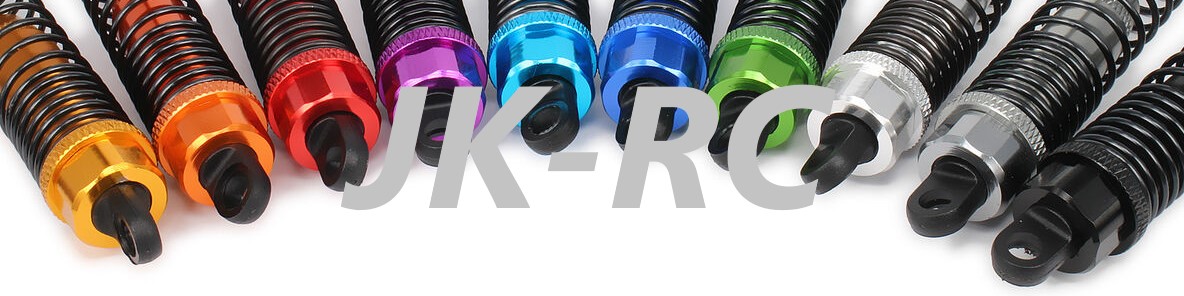

If you would prefer a different colour, just drop us a message before purchasing to check availability.

Supplied as shown in the first (main) picture, please allow for the unlikely possibility of 1/ a slight difference in the shade of the main colour from one shock to another 2/ a +/- 5mm variance in size 3/ light surface marks from the manufacturing process 4/ slight residue oil from the filling process.
