New Tamiya DT04/DT-04 Fighter NXGEN CNC Aluminium Oil Damper/Shock Absorber Set By JK-RC (DT02/DT03)
Part No: JKRC9853R
This is a full set of new aluminium oil dampers supplied pre-built & filled ready to fit Tamiya's DT-04/DT-04 chassis's.
Supplied with six replacement stainless steel screws:
Front lower mounting point: Re-use the existing pin screws
Rear lower mounting point: Re-use the plastic spacers with the supplied 18mm screws
Front & rear upper mounting points: Remove the existing brass ball connectors and fit the new shocks using the supplied 14mm screws
If you would prefer a different colour, just drop us a message before purchasing to check availability.

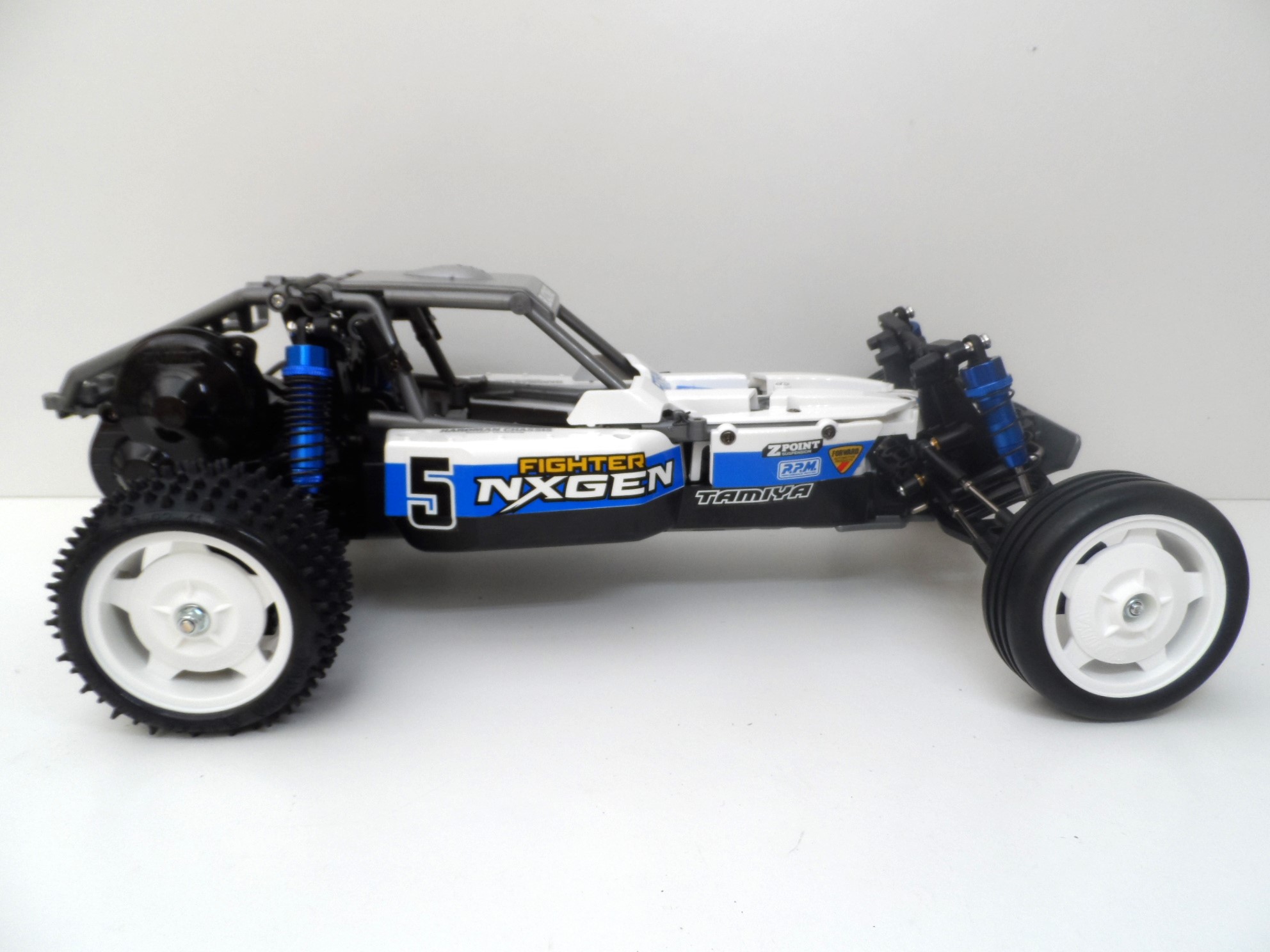

Important: These are longer than the standard shocks so will raise the height increasing the ground clearance (see last picture for how the chassis sits with these shocks fitted)
Please note that most noticeably under artificial light the red rear shocks can sometimes have a hint of orange to the shade - once at opposite ends of the car the difference to the fronts is barely noticeable.
Supplied as shown in the first (main) picture, please allow for the unlikely possibility of 1/ a slight difference in the shade of the main colour from one shock to another 2/ a +/- 5mm variance in size 3/ light surface marks from the manufacturing process 4/ slight residue oil from the filling process.
